Join the global ADSBItalia network

Connect your ADS-B and MLAT feeder to ADSBItalia.

ADSBItalia aggregates ADS-B feeds and MLAT results from independent stations around the world. You can contribute to the live map while keeping full control of your local setup.

You can join with Ultrafeeder/Docker, ADSB.im, with a compatible Beast feed, or with the classic script-based installation. All connections to ADSBItalia are outbound: no router port forwarding is required.

Choose a method Check your feed Contact us
Community support

Need help with your setup?

Ask the ADSBItalia community on Discord or Telegram. Include your setup method, hardware, software, error message and relevant logs. Never share tokens, passwords or personal information.

Ask on Discord Ask in Telegram Community

Ways to join

ADSBItalia accepts ADS-B feeds in Beast format and, where possible, dedicated MLAT connections. The best method depends on how your station is configured: Docker/Ultrafeeder, ADSB.im, a classic local decoder, readsb, dump1090 or other compatible software.

Recommended Ultrafeeder / Docker

If you use Ultrafeeder, you can add ADSBItalia as an outbound feeder without installing additional systemd services on the host.

Configure Ultrafeeder
No script ADSB.im

From ADSB.im v3.0.13, ADSBItalia is built in. Enable it with a checkbox on the Data Sharing page; no manual arguments are required.

Configure ADSB.im
Alternative Classic installation

If you have a local decoder with Beast output available on a TCP port, you can use the ADSBItalia script to create dedicated ADS-B and MLAT services.

Use the script
New ACARS / VDL2 / HFDL / Satcom

Feed VHF ACARS, VDL Mode 2, HFDL shortwave, or Inmarsat/Iridium Satcom telemetry via acars_router, dumphfdl, or ADSB.im.

Configure ACARS
The “Your feed status” page also works with Ultrafeeder: ADSBItalia checks connections from your public IP to the network ports.

What you send to ADSBItalia

  • ADS-B Beast feed to ADSBItalia on port 31108.
  • MLAT connection to ADSBItalia on port 41113, if configured.
  • Optional local MLAT results on a dedicated port, if supported by your setup.
  • Correct feeder name, coordinates and altitude to identify the station and improve MLAT quality.

Main ports

Local Beast30005
ADSBItalia ADS-B31108
ADSBItalia MLAT41113
MLAT results33106 / libera

The local Beast port may be different from 30005. ADSBItalia ports are outbound connections from the feeder to the server.

Recommended method: Ultrafeeder / Docker

Ultrafeeder is the best option if you already manage your ADS-B station with Docker. In this case, you do not need to install the ADSBItalia script on the host: add ADSBItalia to the outbound configuration of the container and restart Ultrafeeder.

Before editing

  • Make a copy of your docker-compose.yml or .env file.
  • Check that coordinates, altitude, feeder name and UUID are correct.
  • If you already have other networks in ULTRAFEEDER_CONFIG, add ADSBItalia without deleting existing lines.

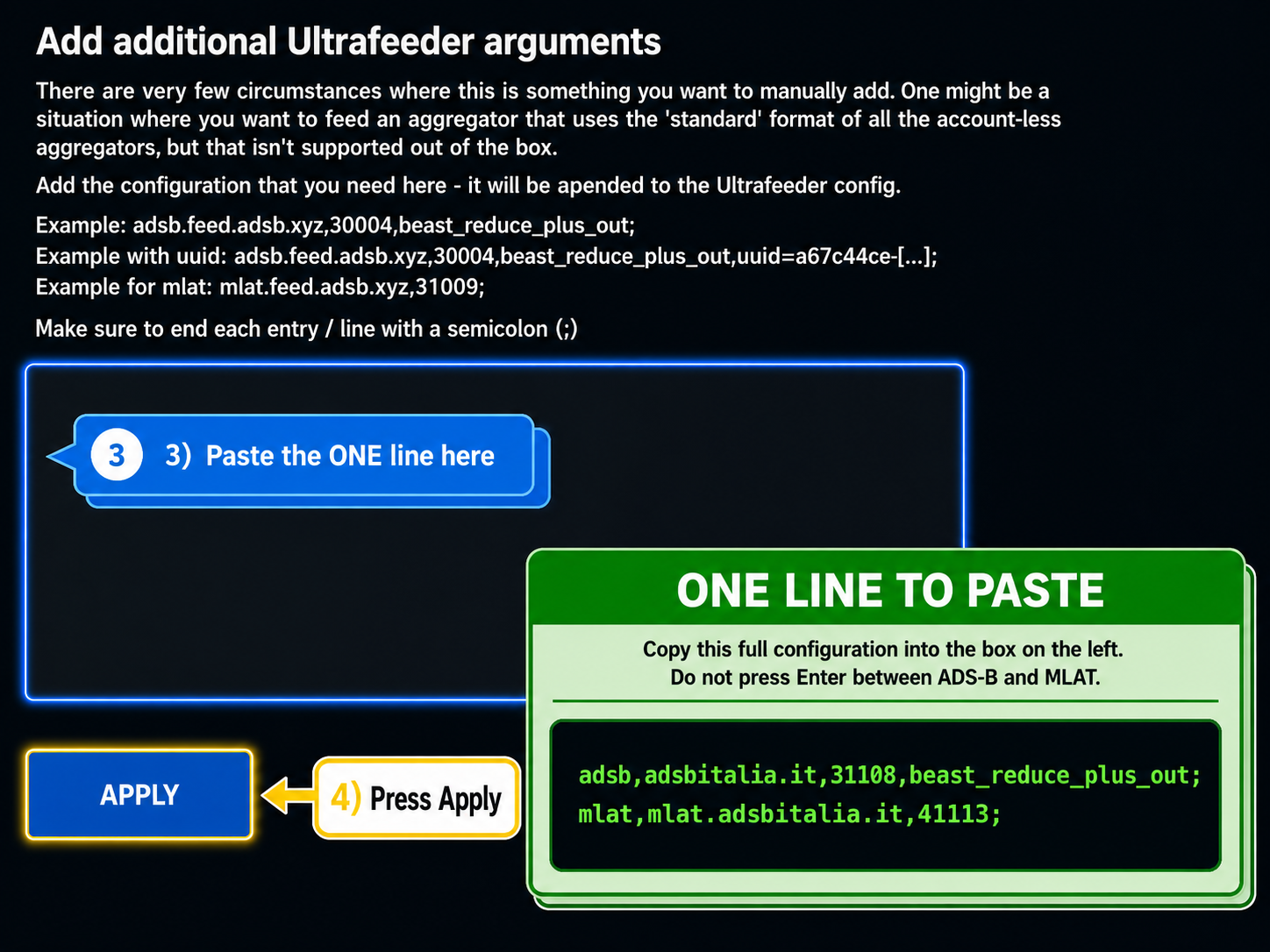

Ultrafeeder configuration example

Add the ADSBItalia lines to your ULTRAFEEDER_CONFIG variable. Keep semicolons between lines, except on the last line of the variable.

ULTRAFEEDER_CONFIG=
adsb,adsbitalia.it,31108,beast_reduce_plus_out;
mlat,mlat.adsbitalia.it,41113;

Restart and check

docker compose pull ultrafeeder
docker compose up -d ultrafeeder
docker logs -f ultrafeeder
The MLAT line requires only the MLAT server host and port. Use the configuration exactly as shown. If you are unsure, contact ADSBItalia and mention that you use Ultrafeeder.

ADSB.im method

From ADSB.im version v3.0.13, ADSBItalia is integrated directly into the web interface. You no longer need to run a script, open the Expert section or paste Ultrafeeder arguments.

Enable ADSBItalia

  1. Make sure your ADSB.im installation is updated to v3.0.13 or later.
  2. Open the ADSB.im web interface and go to Data Sharing.
  3. Find ADSBItalia in the list of aggregators.
  4. Enable the ADSBItalia checkbox and save or apply the changes.
That is all: ADSB.im manages the required ADS-B and MLAT connections automatically. After applying the change, check the “Your feed status” page to confirm that the station is online.

Classic script-based installation

Use this method if you have a local ADS-B decoder exposing Beast output on 127.0.0.1 or on a host reachable by the feeder machine.

Quick install

Run this command on the feeder:

curl -fsSL https://raw.githubusercontent.com/ADSBItalia/Feeding/main/install.sh -o install.sh && bash install.sh

What the script does

The script checks the local Beast port, installs the needed packages, prepares the dedicated mlat-client environment, registers the feeder and creates local systemd services to send ADS-B and MLAT to ADSBItalia.

Available scripts

  • install.sh — initial feeder installation.
  • update.sh — update feeder name, coordinates and altitude.
  • uninstall.sh — remove ADSBItalia services and the dedicated MLAT environment.

Requirements

  • Active ADS-B receiver.
  • Local Beast feed available or a compatible Ultrafeeder/Docker setup.
  • Stable Internet connection.
  • Ability to send data to ADSBItalia through an outbound connection.
  • Correct coordinates and altitude if you also want to contribute to MLAT.

No router port forwarding is required. Classic installation needs sudo privileges; with Ultrafeeder you only edit your existing Docker configuration.

Local MLAT results

When configured, the feeder can receive MLAT results locally and reuse them in its own installation, for example in the local map or compatible services.

Management commands

Classic installation

Service status:

sudo systemctl status adsbitalia-feed.service
sudo systemctl status adsbitalia-mlat.service

Live logs:

sudo journalctl -u adsbitalia-feed.service -f
sudo journalctl -u adsbitalia-mlat.service -f

Ultrafeeder / Docker

docker ps | grep ultrafeeder
docker logs -f ultrafeeder
docker compose logs -f ultrafeeder

Update and removal

Update classic installation details

To change feeder name, coordinates or altitude:

curl -fsSL https://raw.githubusercontent.com/ADSBItalia/Feeding/main/update.sh -o update.sh && bash update.sh

Remove ADSBItalia

To remove ADSBItalia services from the classic installation:

curl -fsSL https://raw.githubusercontent.com/ADSBItalia/Feeding/main/uninstall.sh | sudo bash

With Ultrafeeder, remove the ADSBItalia lines from the container configuration and restart Ultrafeeder.

Files created by the classic installation

/opt/adsbitalia-mlat                         Python environment dedicated to mlat-client.
/etc/adsbitalia/feeder.conf                 Feeder configuration.
/etc/systemd/system/adsbitalia-mlat.service     ADSBItalia MLAT systemd service.
/etc/systemd/system/adsbitalia-feed.service     ADSBItalia ADS-B forwarding systemd service.

These files are not created if you join through Ultrafeeder/Docker without using the classic script.

Troubleshooting

If the feed does not appear online, first check which method you are using.

Classic installation

sudo systemctl status adsbitalia-feed.service
sudo systemctl status adsbitalia-mlat.service
sudo journalctl -u adsbitalia-feed.service -n 100 --no-pager
sudo journalctl -u adsbitalia-mlat.service -n 100 --no-pager

Ultrafeeder

docker ps | grep ultrafeeder
docker logs --tail 100 ultrafeeder
docker compose logs --tail 100 ultrafeeder

Also check that the local feeder is generating ADS-B data, that coordinates are correct and that the firewall allows outbound connections to ADSBItalia.

Contact ADSBItalia

Feeding ACARS, VDL-M2, HFDL & Satcom to ADSBItalia

ADSBItalia hosts a dedicated central ACARS & Satcom Router Engine that aggregates live telemetry from VHF ACARS, VDL Mode 2, HFDL (Shortwave), and Satcom (Inmarsat/Iridium) stations worldwide.

Our backend automatically enriches position reports with real-time GroundSpeed calculation and Altitude Memory persistence for oceanic and remote flights, rendering them live on the map.

Global Ingestion Host: feed.adsbitalia.it (or adsbitalia.it)

Dedicated Ingestion Ports Table

VHF ACARS (131 MHz)5550JSON (TCP/UDP)
VDL Mode 2 (VHF 136 MHz)5555JSON (TCP/UDP)
HFDL (Shortwave 2–30 MHz)5556JSON (TCP/UDP)
Satcom Inmarsat (JAERO / IMSL)5557JSON (TCP/UDP)
Satcom Iridium (IRDM / irdm2acars)5558JSON (TCP/UDP)
Generic BaseStation SBS (JAERO)31109SBS (TCP)

acars_router Setup (Docker / SDR-Enthusiasts)

If you run acars_router (SDR-Enthusiasts), add forwarding destinations via TCP to your docker-compose.yml environment variables and restart the container:

environment:
  - AR_SEND_TCP_ACARS=feed.adsbitalia.it:5550
  - AR_SEND_TCP_VDLM2=feed.adsbitalia.it:5555
  - AR_SEND_TCP_HFDL=feed.adsbitalia.it:5556
  - AR_SEND_TCP_IMSL=feed.adsbitalia.it:5557
  - AR_SEND_TCP_IRDM=feed.adsbitalia.it:5558

Reliability note: We strongly recommend using TCP (as shown above) rather than UDP to prevent message drops caused by carrier firewalls or router NAT.

ADSB.im Setup

Open your ADSB.im web dashboard, navigate to the active HFDL, VDL2, Satcom or ACARS package, and under Custom Destinations set feed.adsbitalia.it (or adsbitalia.it) with the designated port in JSON format.

Host: feed.adsbitalia.it
Ports: 5550 (VHF ACARS) | 5555 (VDL2) | 5556 (HFDL) | 5557 (Inmarsat) | 5558 (Iridium)
Format: JSON

Standalone Demodulators & Decoders

# Satcom Inmarsat (JAERO):
Settings -> Audio/Decoding -> ACARS Output -> Host: feed.adsbitalia.it, Port: 5557, Protocol: TCP or UDP (JSON)
# (or SBS TCP output on port 31109)

# Satcom Iridium (irdm2acars / iridium-toolkit):
Host: feed.adsbitalia.it, Port: 5558, Protocol: TCP or UDP (JSON)

# VHF ACARS (acarsdec):
acarsdec -j feed.adsbitalia.it:5550

# VDL Mode 2 (dumpvdl2):
dumpvdl2 --output-acars decoded:json:tcp:address=feed.adsbitalia.it,port=5555

# HFDL (dumphfdl):
dumphfdl --output decoded:json:tcp:address=feed.adsbitalia.it,port=5556
